Quickstart
From parts to AirPlay in three steps
The short version - a full written guide is coming soon. This covers what you need to get arply running.
-
1
Flash the firmware
Plug the board in over USB and flash it straight from your browser - no software to install.
-
2
Join it to Wi‑Fi
Plug arply into USB power and it starts its own network,
arply setup. Connect to it - a setup page opens automatically, or open arply.local yourself. From there, connect it to your Wi‑Fi, give it a name, and configure it to your liking. -
3
Find it in AirPlay
It shows up in the AirPlay menu on any iPhone, iPad, or Mac on the same network.
Reference

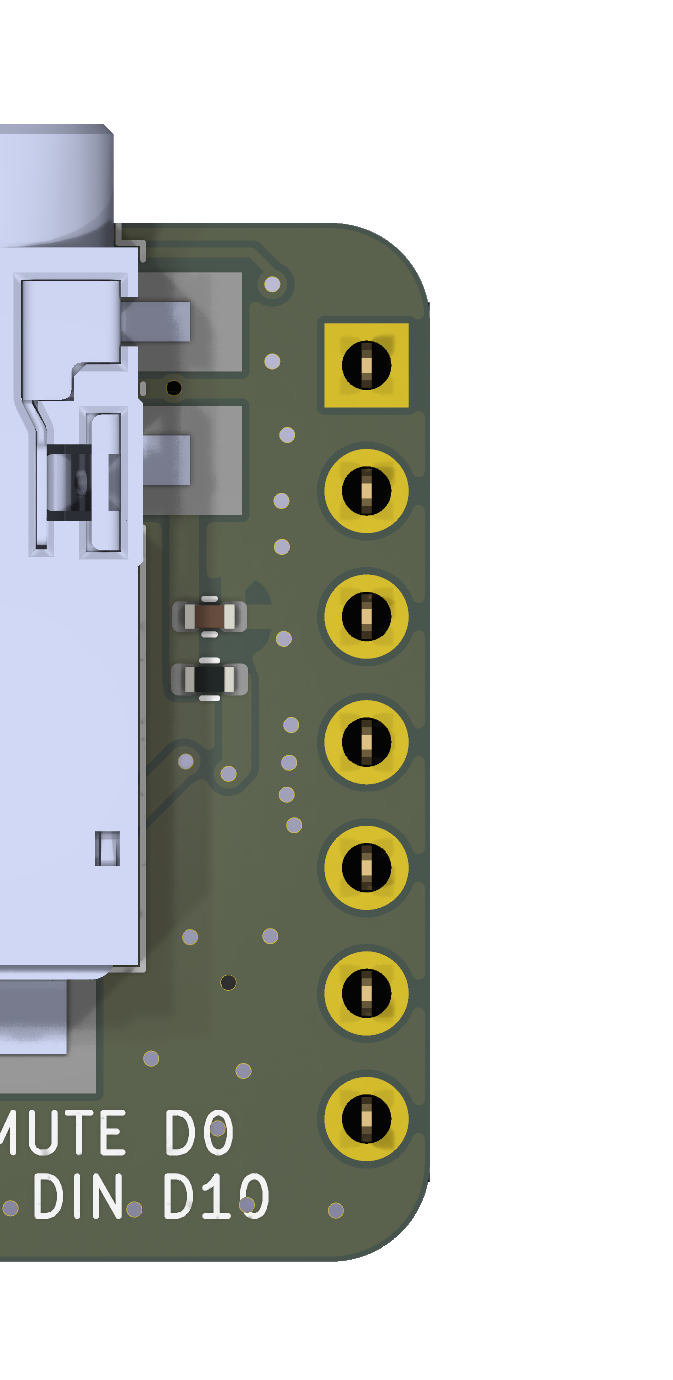

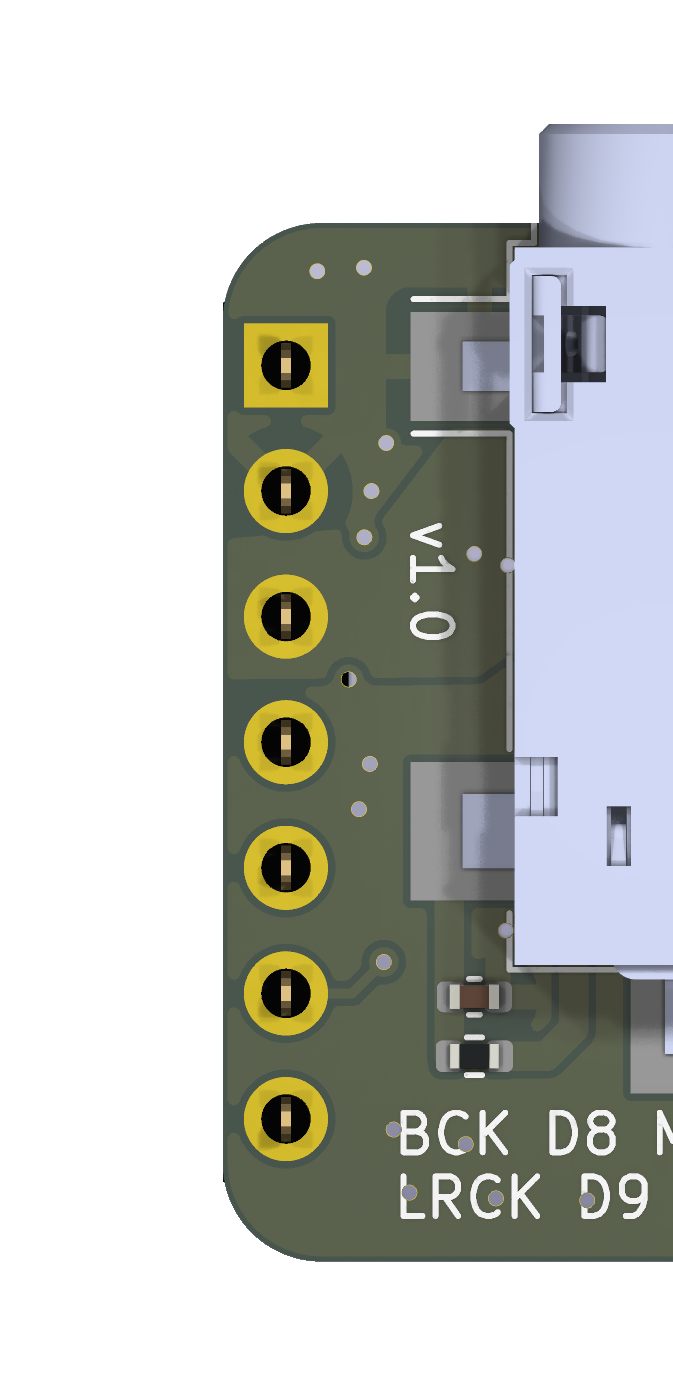

Pinout
- D0 nMUTE
- D1
- D2
- D3
- D4
- D5
- D6
- 5V
- GND
- EN
- DIN D10
- LRCK D9
- BCK D8
- D7
Print it yourself
CAD Resources

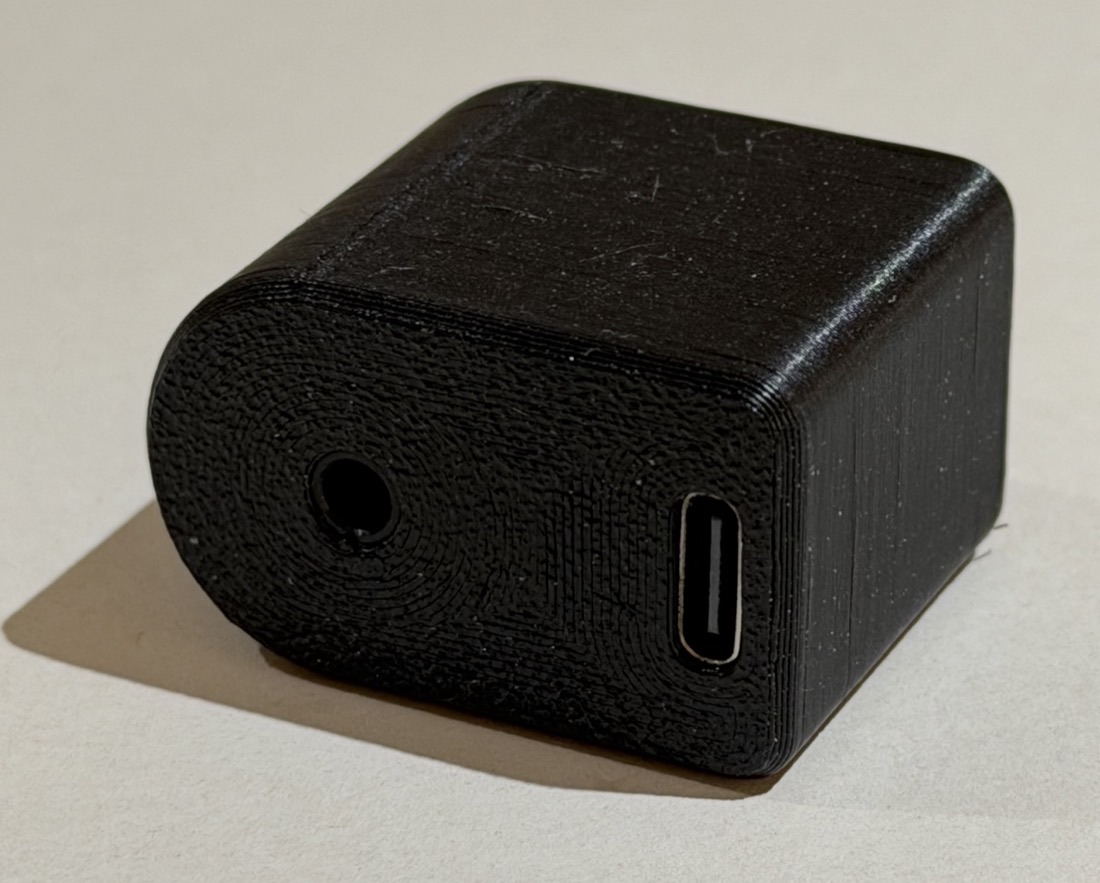

A minimal enclosure sized for the board and speaker wiring arply needs. The housing and electronics designs are licensed CC BY‑NC‑SA 4.0 - free to build, modify, and share for personal use; reselling them commercially needs permission.
Printables
Browse the project page on Printables - remixes, print settings, and community photos.
View on Printables

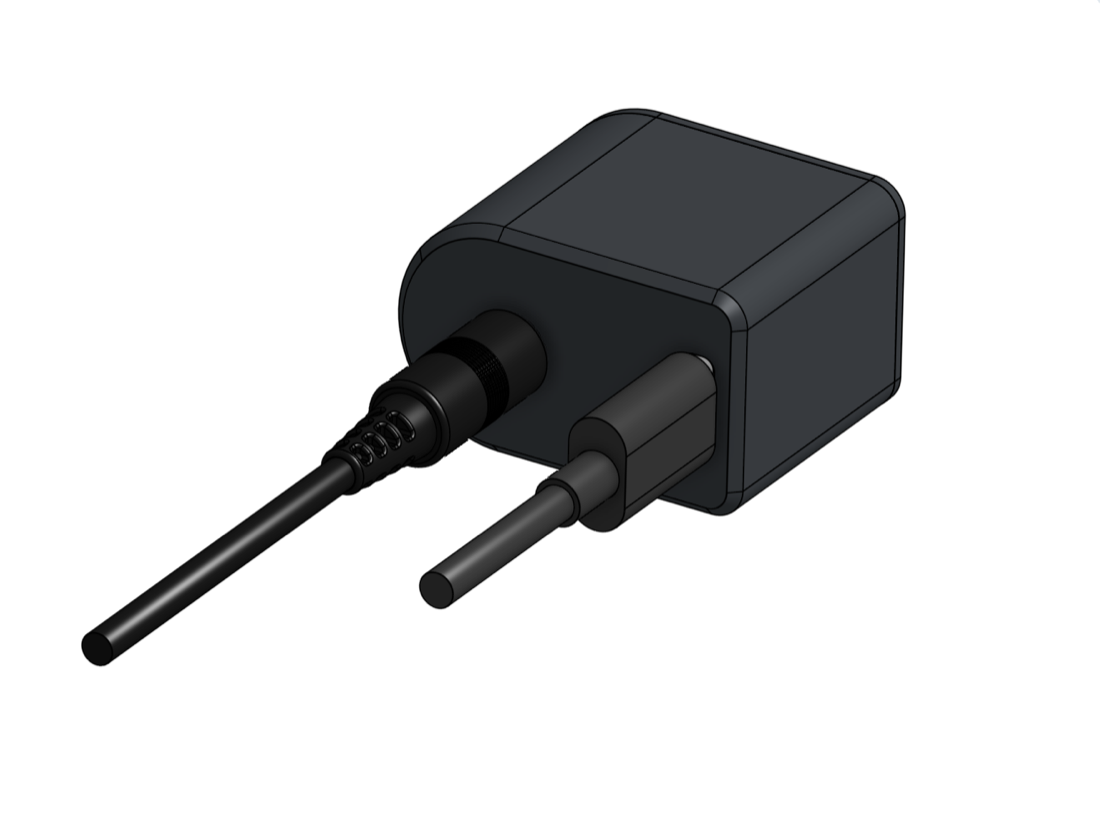

CAD Model
The full assembly - PCB and housing together, viewable right in your browser.
View on OnshapeBuy the PCB
Don't want to order it yourself? Get the bare board for self-assembly on Tindie.
Get it on TindieSet it up
Flash the firmware
Flash arply straight from your browser over USB - no software to install. Works in Chrome or Edge on desktop.
ESP32 web flasher
Plug in your board and flash the latest arply firmware in one click, powered by ESP Web Tools.
